Sectional Door SAFELINE 60 (RC3)
Sectional Door SAFELINE 60 (RC3)
A combination of burglary and thermal protection
Looking for a door that offers certified burglary protection while providing high thermal insulation? Our highly insulating SAFELINE 60 (RC3) Anti-Burglary Sectional Door has been specially developed for this purpose. The SAFELINE 60 Sectional Door combines certified burglary protection with highly insulating ISO panels, design flexibility and various application options. Depending on the specific project and installation situation, its thermal performance can support compliance with applicable requirements under Germany’s Building Energy Act.
Certified RC3 burglary protection
The door’s RC3 resistance rating provides tested resistance against defined burglary attempts. The SAFELINE 60 (RC3) Anti-Burglary Sectional Door is tested and certified for a size of up to eight by eight metres, in accordance with the relevant certification documents.
High thermal insulation thanks to ISO panels
The SAFELINE 60’s highly insulating ISO panels provide an overall U-value of approximately 0.97 W/m²K in the 4 ×\times× 4 m configuration. To achieve the RC3 protection rating, the sections feature a special sandwich construction.

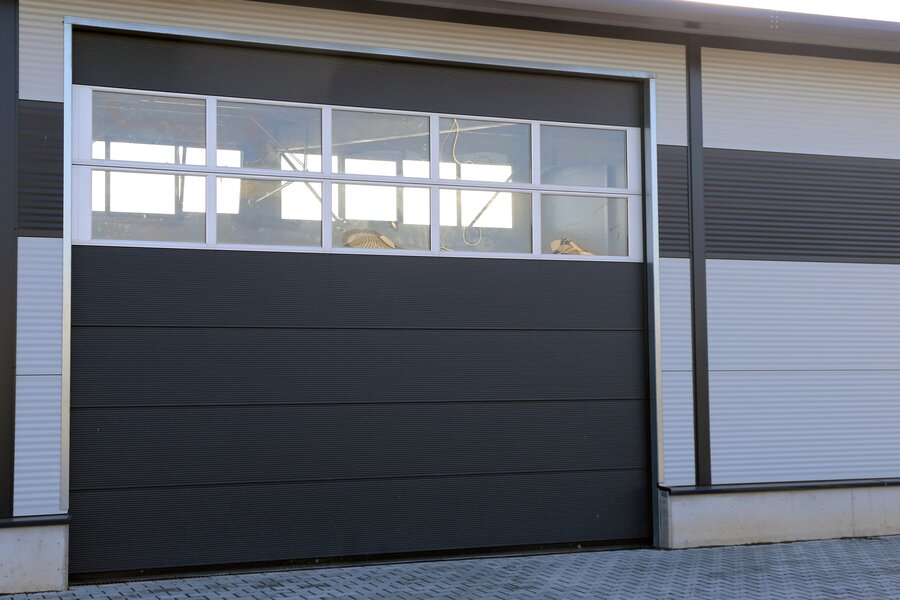

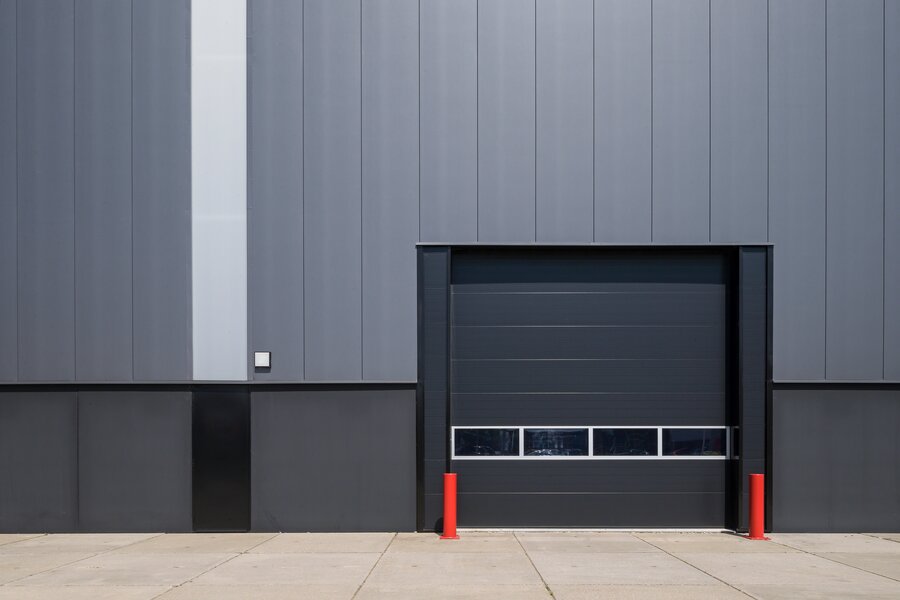

Glazing section also possible with RC3
Alternatively, the door leaf can be fitted with one or more glazing sections. These are encased in a reinforced, thermally insulated aluminium frame and combine design flexibility with the certified level of burglary protection applicable to the respective tested configuration. Jansen’s glass sections also allow additional daylight into your construction project. A full aluminium frame door with glazing or a solid infill is also possible.
Now also available with sound insulation
The door can optionally be equipped with our specially developed sound insulation accessory package, which includes an additional sealing level and decoupled guide rails. For the tested configuration, this package achieves a sound insulation value of 31 dB.
Suitable for different construction situations
A variety of turns and fittings for the SAFELINE 60 Anti-Burglary Sectional Door supports flexibility during installation and operation in different construction situations, including headroom as low as 250 mm, vertical turns and installations with a sloping roof line.
If you have any questions or cannot find the right door for your application, please do not hesitate to contact us.
PRODUCT DESCRIPTION
Door Leaf
The door leaf is available in various models and can be supplied either as an ISO panel version with or without additional glazing options or as an aluminium frame section with glazing or a solid panel infill. Both the ISO panel and the aluminium frame sections have a thermally separated construction to ensure optimum heat protection. In the standard version, the ISO panel is microlined on the outside and smooth on the inside.
Surface
The surface of the ISO sections is coated in RAL 9002 as standard. The aluminium frame sections are anodised in E6/C0(EV1) as standard. The ISO and aluminium frame sections can be painted in RAL colour of choice on request.
Locking system
The door system has locking on both sides on the floor section to guarantee anti-burglary protection. It can be fitted with either a manual slide bolt or electric locking mechanism. As an option, these locking mechanisms can also be connected to the burglar alarm by means of VDS-C contacts.
FURNITURE/TURN
We offer various turn options:
· Standard turn for a minimum headroom of 450 mm
· Low headroom turn for a minimum headroom of 250 mm
· High lift and/or higher travel turn
· Roof line fitting for a turn tailored to the roof pitch
HEAT PROTECTION
U value (heat protection) dependent on door size:
· approx. 0.97 W/m²K for a 4x4 door in ISO panel version
· approx. 1.17 W/m²K for a 4x4 door in ISO panel version with a glazing section
· approx. 1.39 W/m²K for a 4x4 door in ISO panel version with two glazing sections
Resistance class RC3
With a door in this resistance class, a perpetrator proceeding in their usual manner will not be able to break the locked door open with a medium duty hand tool and a crowbar. That is in a dynamic resistance time of five minutes per attack point and with a static load of up to 600 kg.
Soundproofing
Soundproofing up to 31dB test value
Rw,P = 31 dB (door leaf)
Rw,P = 29 dB (complete system)
Rw,P = 31 dB (complete system incl. sound insulation kit)
