Overhead stacking gate HERO

Description

Available as European tested and classified overhead stacking door.

Ideal door solution for installation situations with restricted room.

Special safety construction.

  • European classified
  • Fire resistant
  • Smoke-proof

Product description

Gate leaf

The gate leaf is made out of 62 mm thick single elements (quantity and height depend on installation conditions). Gate leaf thickness of 62 mm, surface of zincked 0,75 mm steel sheet with patched baffle plates and finger protection on both sides.

Guide rail

The guide rail consists of zinc-coated sheet steel in a screwed construction with fire protection isolation. The cover plates of the guide rail are a zincked construction with rubber profiles as “side handle protection”.

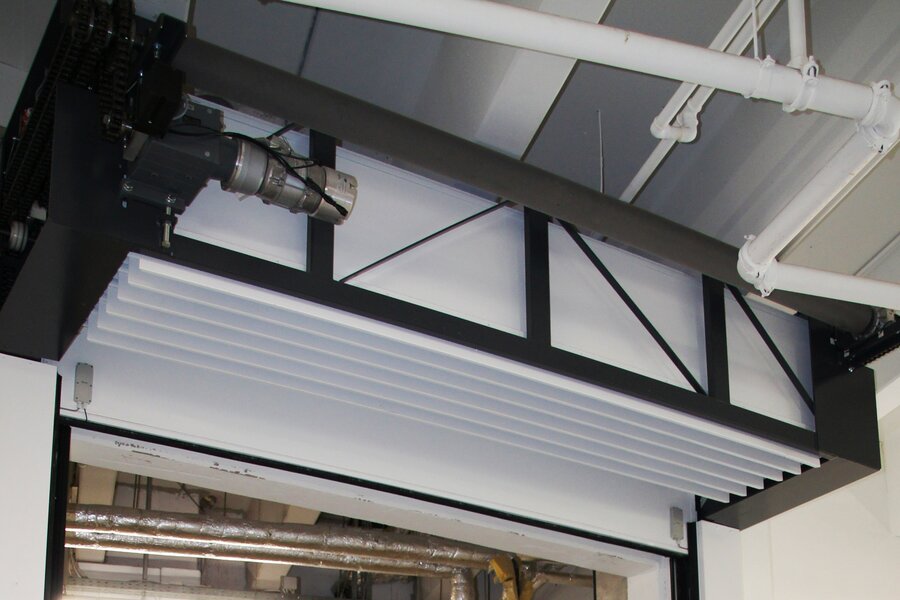

Redirection

Low-lintel redirection with a minimum header height of 740 mm is possible.

Control & drive

A specially coordinated drive and control system (micro-processor steered lock system) which has been approved by building control is employed.

Due to miscellaneous independently adjustable parameters in the control our overhead stacking gate HERO can be run like standard industrial gates (see supplementary equipment).

Due to battery buffering the gate will be held in its current position for at least four hours in case of a power outage. The control as well as all other safety devices continues to be active in case of fire.

Potentional-free contacts enable an operating condition query of the gate.

An additional installation of a fire alarm system by customer is realisable by existing interfaces.

Media & downloads
Technical details

Bedienelemente

  • Funk
  • IR-/ Radar- Bewegungsmelder
  • Zugschalter
  • Schlüsseltaster
  • Unter-Glas-Auslösetaster

Beschichtung

  • NCS
  • DB
  • RAL
  • Grundierung

ElektrischeOptionen

  • Impulssteuerung
  • Zeitschließung
  • diverse Schließbereichsüberwachungen

Fire resistance duration

  • EI2 30
  • EI2 60
  • EI2 90

Self-closing feature

  • C0 (0 Zyklen)
  • C1 (500 Zyklen)
  • C2 (10.000 Zyklen)

Smoke

  • Sa
  • S200

clear width [mm]

  • 8,850 mm

clear height [mm]

  • 6,337 mm

SeitenplatzAntriebsseite

  • 450 mm

SeitenplatzLagerseite

  • 380 mm

Sicherheitsausstattung

  • Light barrier

Sturzhoehe

  • 1,280 mm
