Polycarbonate gates

Polycarbonate gates are highly inherent stable and are ideal for large dimensions, the material is robust and flexible. gates up to 12 metre width are easily realisable.

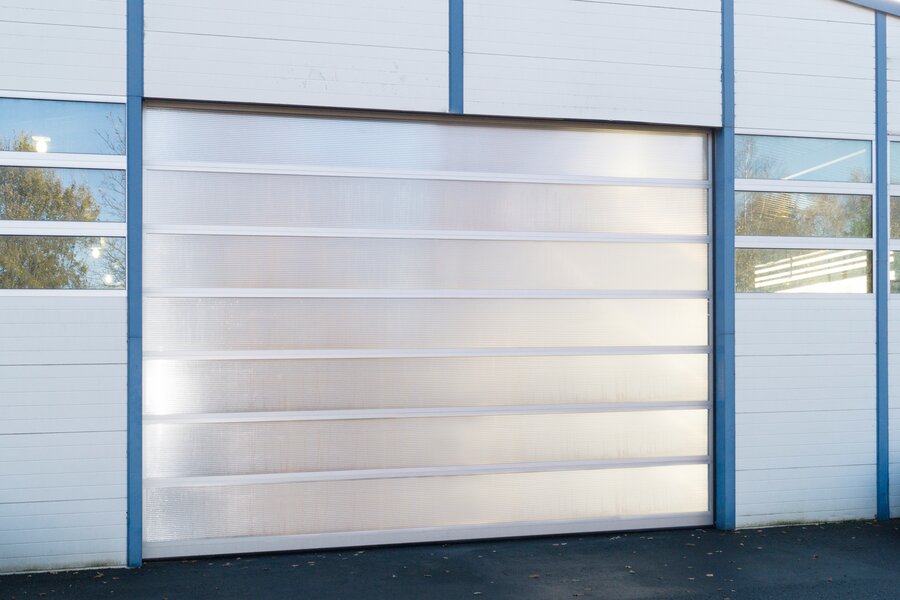

The gate leaf consists of translucent polycarbonate sections with surrounding, thermally separated aluminium frame sections (44 mm thick door leaf). The high inherent stability of the section enables a flush design in wind load class 3 with a width of 12,000 mm (80 mm thick door leaf). Wind load class 4 was achieved in test at a width of 10,000 mm. The additional-leafed construction ensures good insulation values and low self-weight.

The low weight also brings advantages:  The drive technology can be designed in such way, that expensive drives for heavy weights are not necessary and no special requirements for the statics or the supporting structure must be made.

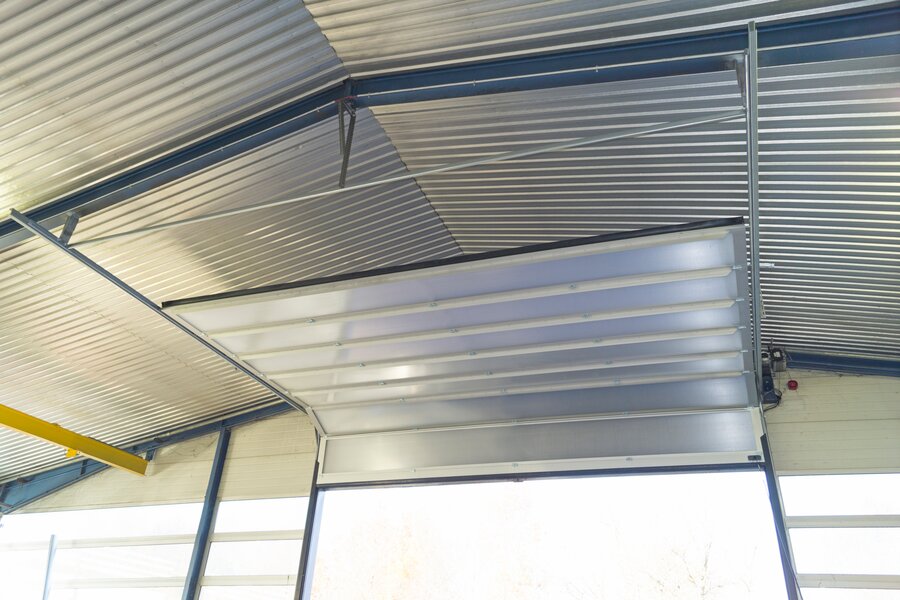

The construction is similar to the awarded hingeless sectional door. The castors are inserted in the front side of the sections and are not visible in mounted condition. The guide rails are completely closed and equipped with profile seal. The look is visually sophisticated and flush and also can be realised according the facade. A customised planning of the gates as well as an order-related production are the trademark of the company Jansen.
