Safeport 24 Burglary Protection System
Innovative security for cash machines

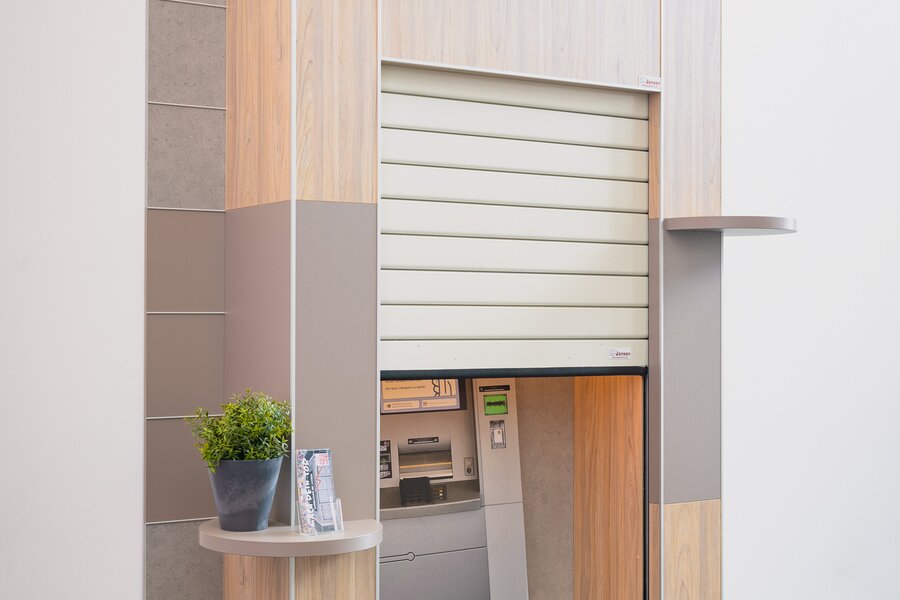

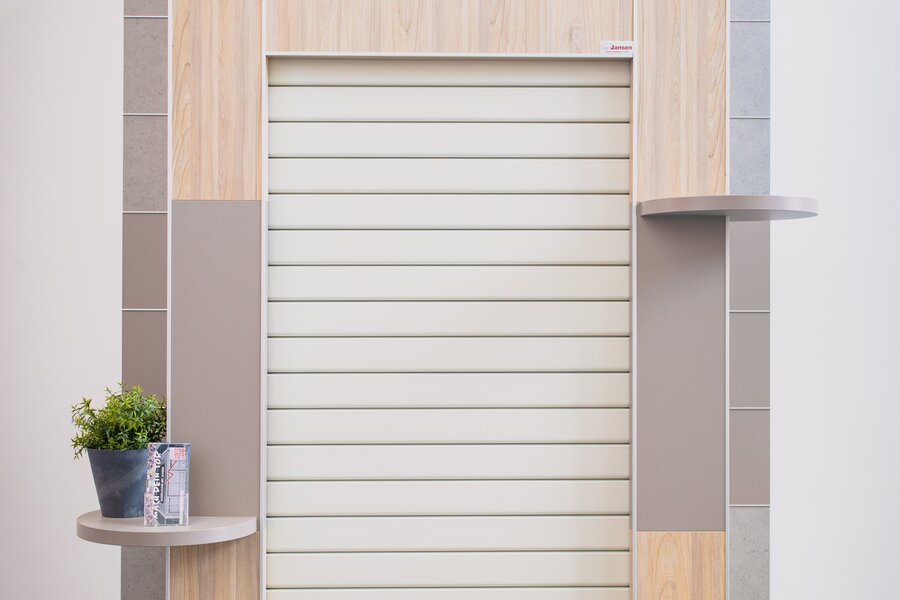

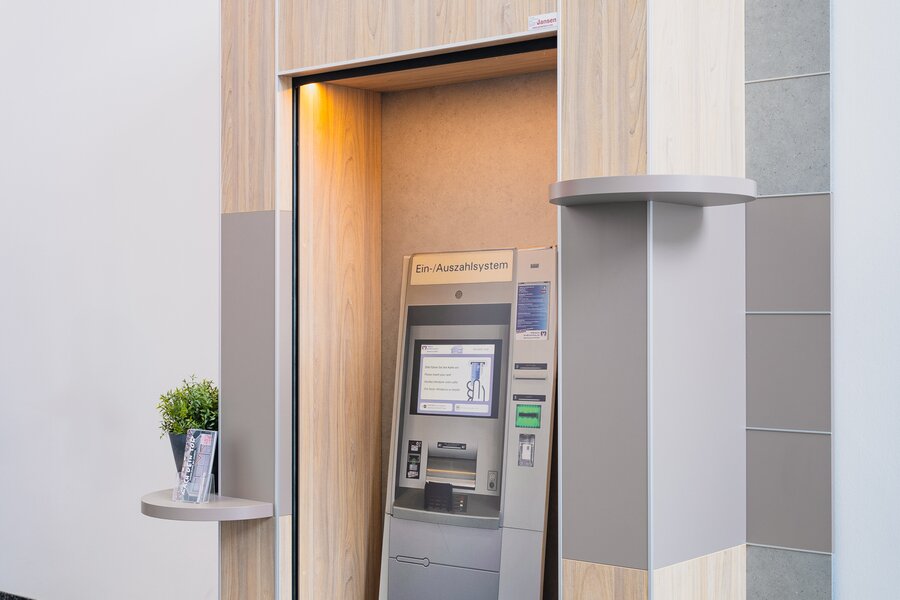

With our SAFEPORT 24 burglary protection system, you get mechanical burglary protection featuring a three-point security system that can be installed quickly and easily, offers certified protection and low maintenance costs, and acts as a deterrent. It consists of a burglar-resistant steel frame portal with an integrated roller shutter.
Your benefits at a glance
With certified resistance class RC3, it offers protection against physical force and the use of common burglary tools. It also features an electromechanical anti-burglary bolt that acts as a push-up security device.
The modular design with a ‘plug-and-play’ system allows existing and new ATMs to be integrated into the anti-burglary system without the need for costly modifications. The integration of existing anti-burglary systems is also possible without any problems.
Low maintenance costs
A sufficient distance between the door and the ATM makes it necessary to blow the lock twice to gain access to the machine, acting as a deterrent.
VDS-certified contacts for monitoring the “gate closed” and “gate locked” functions trigger a warning message to the burglar alarm system at the slightest disturbance.
An IoT connection of the gate to a status and remote maintenance monitoring system also provides 24-hour monitoring and security.

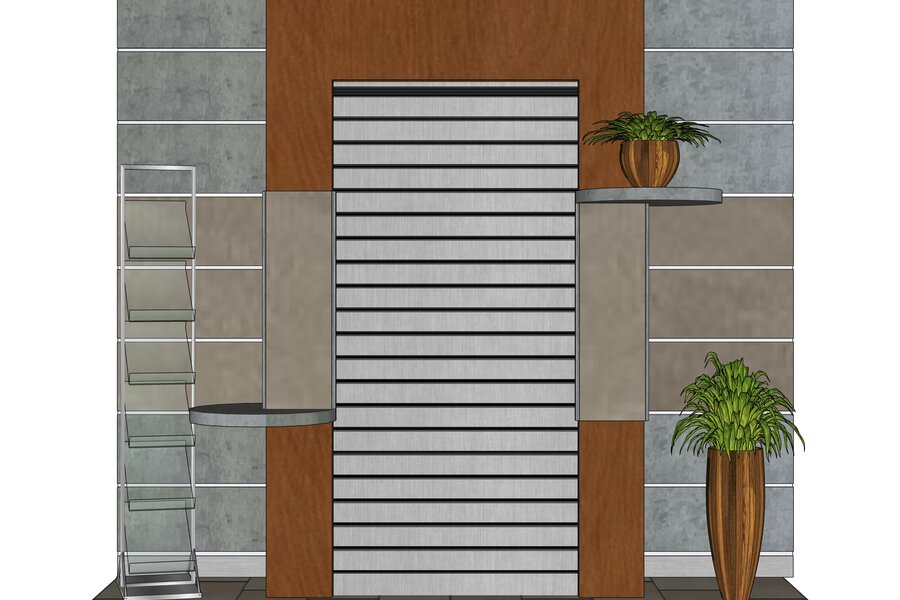

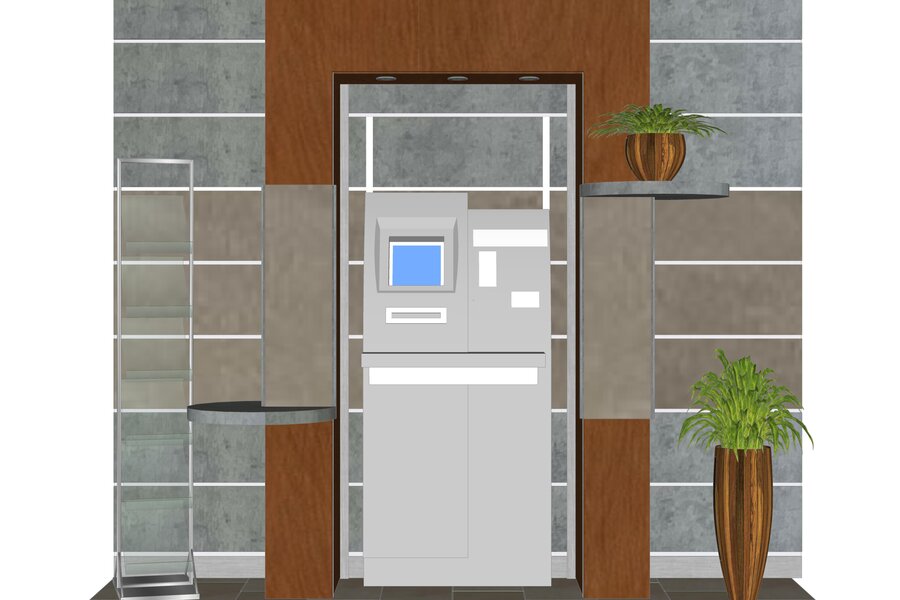

The modular system can be adapted to the design of the customer’s premises according to their requirements
The SAFEPORT 24 burglary protection system offers effective protection against break-ins. Do you have any further questions? Then please feel free to give us a call.
SAFEPORT 24 Burglary Protection System Product Description
Burglary protection
The steel-framed gateway, including the roller door, is certified to DIN/TS 18194:2020-7 and therefore complies with resistance class RC3.
Door leaf
The door leaf consists of a double-walled aluminium slat with an ISO core.
running rail
The burglar-resistant running rail, which is enclosed on three sides and features all-round interlocking protection and a lip seal, ensures security and an optimal seal.
Surfaces
The door leaf and guide rails are available in various designs. The slats are available in natural aluminium, anodised, stainless steel or RAL colours of your choice. Guide rails are available in galvanised or steel.
Drive
The SAFELINE 24 (RC3) anti-burglary roller shutter is fitted with a high-quality electric direct-drive motor.
Control
The JTS Connect+ control unit combines IoT connectivity with interface cables for various types of drives. It offers additional functions such as smoke and heat extraction, anti-intrusion locking and force monitoring.
RC locking mechanism
Electromechanical lock with automatic opening and closing. Jansen SAFELOCK2 model with VDS-c contact for connection to the on-site burglar alarm system (message: ‘Door locked’). Emergency release in the secure area.
Connection options for burglar alarm systems
VdS-C-approved magnetic contacts for status monitoring (“Gate closed”, “Gate locked” and, optionally, additional intrusion detection contacts (“Vibration”) can be connected to the on-site intrusion detection system. In addition, five potential-free contacts are available for connection to the on-site building management system.
